Rotary Encoder Optical Shaft Sensor for Embroidery Machine

  • Rotary Encoder Optical Shaft Sensor for Embroidery Machine
  • Rotary Encoder Optical Shaft Sensor for Embroidery Machine
  • Rotary Encoder Optical Shaft Sensor for Embroidery Machine

Rotary Encoder Optical Shaft Sensor for Embroidery Machine

    Payment Type: T/T,Paypal
    Terms of Trade: FOB,CFR,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 7 Days
    Packaging: Carton
    Brand: LANDER
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 500 sets per week
    Certificate: ISO9001
    HS Code: 85437099

Basic Info

Model No.: 38H

Product Description


Products Description



Rotary Encoder Optical Shaft Sensor for Embroidery Machine


38 series shaft type incremental rotary encoder adopts 38mm size shell, which can be installed in a small space. At the same time, the moment of inertia of the shaft is very small, Minimize the rotational inertia imposed on the device. Encoders can be divided into shaft type, hollow shaft type and embedded type, and various control output options.


Easy to install in narrow or limited spaces

Low axis moment of inertia Shaft type,

38mm housing incremental rotary encoder

Resolution up to 5000 pulses

Rotary Incremental Encoder


WHY CHOOSE LANDER?
* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard

Incremental EncoderOptical EncoderRotary Encoder


Features:

* Good reliability, long life, anti-jamming performance.

* Stainless steel shaft has a higher stability and protection.

* Metal shell is more solid and anti-impact.

* Bearing load heavy, anti-oil and water.

* Applicability to a wide variety of mechanical and industrial control.

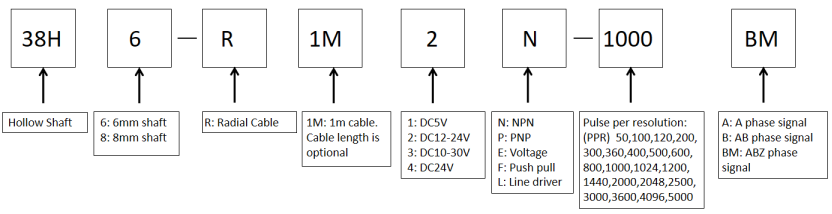

Model Selection Guide



38H

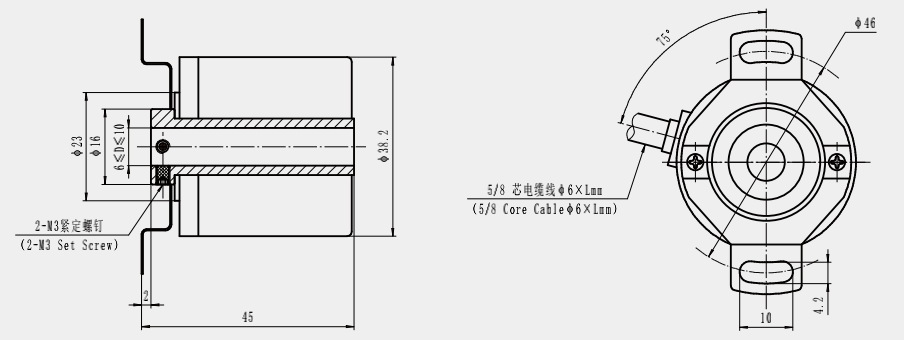

Manufacturing Dimensions
38h


Product Paramenters

ITEM
PARAMTERS
Brand
LANDER
Encoder type
Incremental encoder
External diameter
38mm
Thickness
45mm
Shaft length

Solid Shaft diameter
6mm/8mm
Resolution
50;100;200;250;256;300;360;400;450;500;512;
600;700;720;800;900;1000;1024;1200;2000;2048;
2500;3000;3600;4096;5000;
Output mode
NPN&PNP
Voltage output
Push-pull output
Line driver (TTL,HTL,RS422)
Output phase
Phase A,B,Z,A-,B-,Z-
Outlet type
Cable out from side
Protection grade
IP50 & IP65
Cable length
1m
package
Carton box
Net weight
About 120g (with package)
Certification
CE/ ISO9001
Consumption current
100mA MAX
Top response frenquency
300KHZ
Allowable ripple
≤3%rms
Load Voltage
≤DC30V
starting torque
less than 4.4X10-3 N.m
Intertia moment
less than 1.5x 10-6kg.m2
Shaft load
Radial 40N; Axial 20N
Top REV
5000RPM ;IP65≤3000r rpm
Environmental temperature
Operating:-20 ~+85℃;storage:-25 ~+90℃
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)
49m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Dia cast aluminium
Cable length
1000mm(cable with shielding)
Certification
CE
